Stand alone multi-channel Data Logger with:
> Ultra low power (< 100 uA): 10 years battery life (or power via small solar module)
> With SD memory card (up to 2GByte) for recording of data
> Optional wireless GPRS Internet connection (iP version):
data automatic to
free FTP server
>
Standard versions or custom made systems available
EKOPOWER
provides also tailor-made on-line monitoring systems for specialised
purposes
>
Configured & Ready for Use for
Your Specific Application: see standard configurations below
special design with excellent high-tech workmanshipis posssible, RoHS and CE certified
>
Ultra low power
stand alone fleld applications with long battery life (5-10 years)
> Display
your laptop/PC as "super display" via RS232 or USB for reading current values and status
(and for setup/ entering logger parameters) or online via WEB-display or online
Graphs (EKO21N-iP)
> ONLINE options (via wireless quad band GPRS for remote/mobile applications)
receive data at server and view optional
online graphs
or
WEB-display
>
Inputs for any
sensor(s) or signal(s)
up to max 32 inputs e.g.:
- temperature(s)
- wind speed & direction
- power, level(s)
- analog signal(s): 0/5/10V or 4..20mA
- counter(s) for kWh or rain
- status
- alarm outputs (switch/SMS)
> Highly accurate
12
or 16 bits resolution
> Low Cost
starting from 425 euro

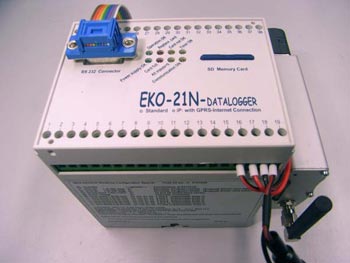

datasheet (pdf) EKO21N: ultra low power datalogger
EKO21N-iP: ultra low power remote wireless (GPRS)
telemetry system
Datalogger
with wireless GPRS Internet connection:
- receive data automatically at your server from remote sites,
see demo
to server
send values from a remote location to any server world-wide
(via internet)
- optional online graphs, see demo for iP
anemometer
World Wide Monitoring over iP: monitoring via internet
For wind, meteorology and many other projects see:
WindOne
package with EKO21N or EKO21N-iP module:
a superior First Class/Low Cost Wind Monitoring System
EKO21N-iP>>GPRS>>INTERNET>>user (server/website)
See
also:
-
iBOX with Ethernet connection
(cabled or WiFi)!
-
datalogger
overview
EKOPOWER:
since 1983 specialist in wind, meteo & dataloggers
systems, introduce a new generation of wind dataloggers
and
wind servers with internet connection (Ethernet or via
wireless GPRS)
Applications: besides meteorology, wind energy, environment, sailing/surfing
etc
we supply monitoring solutions for any project. |
For example: each system
can be expanded on request to a complete meteorological
station with e.g. : temperature, pressure, rain, humidity,
solar radiation,
uv or more anemometers (for wind energy applications) or
with extra
special inputs. Other options are:cables, waterproof cabinet,
mounting
material, power supplies (adaptor, battery pack, solar
module) and
calibration certificate (MEASNET standard for wind energy
applications).
OPTIONAL:
Besides the
automatic receive of datafiles at a server
Online presentation of data
is possible.
Possibilities
- standard presentation of standard graphs
- special presentation according to your requirements
- Beaufort number indication at
website ("wind force scale")
- daily graphs of average wind speed & direction (during
each 10 minutes)
Example of online graph of anemometer
|
ONLINE graph of iP
anemometer (updated every 10 min.)
 |
Other EKO21N-iP configurations:(via wireless GPRS internet connection!)
Versatile
(input) configuration options (1 up to 32 inputs).
Measurements
via iP with many configurations is possibilities, see below.
With a lot of
applications for technology, energy, meteorology, traffic etc.
E.g.: ANY STANDARD SENSOR(s) or SIGNAL(s) can be used, also in
group up to max 32 inputs:
> wind sensor(s)
( using standard MAX40+
wind sensor or low cost
7911)
> acoustic wind sensor (professional anemometer with acoustic sensors)
> wind vane(s)
> meteo stations
> environmental sensors like CO2, NOx, fine dust, micro dust etc.
> temperature sensor(s)
> pressure sensor
> solar radiation
> uv radiation
> rain
> energy
> power
> frequency
> level
> counter
> event
> analog signals (0-10 V , 0/4...20 mA)
> status signals (on/off, high/low)
> serial RS232 signal (position, GPS, etc)
>
special: with inputs and
sensors/transducers according to your
requirements!
Send us your requirements
and we make an offer for your application! |
