Wind & Wind Energy
For highest accuracy &
Site Evaluation and Windfarm/Windturbine Monitoring & Evaluation
Most Significant Features (pdf)
General Desription (pdf)
Compatible with wind sensors from NRG, Thies, RM Young etc.
WIND ENERGY Monitoring Systems
(incl AC/DC kWh
> Professional Windlogger
starting from 655 euro ex VAT
Windlogger speed & direction: 495 euro ex VAT
> Tailor-made systems
your specific project
> Ultra low power (<100 uA, battery life10 years)
& Professional systems
> ONLINE options:
> Remote wireless internet
INTRODUCTION: Accuracy of wind speed measurement is very important for wind energy
Why? Because windpower
is proportional to the cube of windspeed:
Wind Power(Watts)= A*V3 (v=wind speed in m/s)
So a small deviation in
wind speed (eg 0.5 m/s at 5 m/s=10 %) will result
in a deviation of Wind Power of 30%!
how about wind measurements for wind energy applications:
our specialty since 1983 and has been exported to over 90 countries
We supply complete
customised monitoring tools
internet options for:
* Wind Energy Feasibility
Studies (location studies, with approved accuracy certifcates)
* Power Performance Evaluation (Testfields, determinaton of Power
Curve of Windturbines)
* Monitoring & Management
of Wind Energy Projects (eg Wind Farms)
* First Class highly accurate
systems can be supplied (or with low cost standard accuracy)
* Dataprocessing services and
Data and Email
Applications: intended for advanced or professional users!
- essential tool for developing or evaluation of (big) Wind Energy
- meteo-projects (with additional meteo sensors)
For windsurfing, sailing (the online graph option is very useful!)
and environmental studies etc.
LOW COST windloggers and
Pro2 weather stations
for less demanding applications.
If higher accuracy is required (with optional calibration
certificate up to 0.1 m/s accuracy) and/or
also recording of maximum, minimum and standard deviation
(for determination of turbulence
intensity) then choose our advanced
Windlogger, which is
used for big wind energy
projects (with optional Measnet/NIST calibration certificates and
can be supplied up to
Our professional windloggers are equiped with a highly
accurate (1sec) running average filter and
16 bits AD conversion (resolution of 0.01 m/s) and still have
ultra low power consumption
(appr 100uA). Also the
possibility to use our
iBOX datalogger with embedded webserver,
network connections via Ethernet and Internet (wired/wireless
how about wind measurements for wind energy applications: this is
since 1983 and has been exported to over 90 countries.
ACCURACY of wind speed measurements is a KEY FACTOR for wind energy

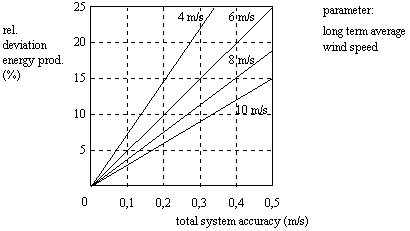

The accuracy of the calculated
Wind Energy production from wind data:
As the Power of
a wind turbine is proportional to the cube of the
wind speed (v3),
a small deviation in wind speed will highly
affect the calculation of the energy production.
deviation of the calculated energy production is equal to:
system accuracy / average wind speed.
For example: when the yearly average wind speed is 6 m/s, measured
system accuracy of +/- 0.5 m/s, the error in the calculation
of the annual
energy production is appr. +/- 25%.
The accuracy should be in the range of 0.1- 0.2 m/s for good results of
or evaluation of the energy production of a (planned) wind energy
First Class systems are available in any configuration with
required if bank credits are used for financing wind energy projects:
- according to European MEASNET standard and according to IEC 61400-121-CD
- according to NIST standard for MAX40+ anemometer (low cost / high performance)
Expandable with meteo sensors and power transducers for power
Data processing software is available
and data processing services are available
for eg: calculation wind energy
production, determination of power curve of wind turbine etc.
how wind measurements
list for tailor-made systems
STANDARD MODELS or special CONFIGURATIONS
Configured & Ready for Use for your specific Project
The system can be
orderd according to your specific requirements:
prices for selecting your specific wind (or meteo) monitoring
configurations with flexiblE OPTIONS:
Basic wind logger:
o example 1a: EKO21N-1A-1W: 1 Anemometer, 1 Windvane
example 1b : iBOX-1A-1W : 1
Anemometer, 1 Windvane
o example 2a: EKO21N-3A-2W-1T-1P:
example 2b: iBOX-3A-2W-1T-1P:
3 Anemometers, 2 Windvanes, 1 Temperature, 1 Pressure
Specifications WindOne System: number One in Wind Monitoring!
Features and possibilities:
> Data storage at
SD memory card
size standard 128MB (up to 2 GB possible)
RS232/USB/wireless GPRS communication (via iP to server) with
> ONLINE options
automatically at server and view OPTIONAL online
(via Ethernet or wireless quad band GPRS/HSDPA modem or 3G
> Highly accurate
optional calibration certificate with
calibration report of the system
- according to international standards (MEASNET,
IEC 61400-121-CD, WMO,IEA etc.)
- bank requirements for financing wind energy projects
> Ultra low power (typ. 100 uA, EKO21N:RS232/GPRS versions, or low power
ideal for stand
alone field applications with long battery life (5-10 years)
> Customised systems possible
(special design, RoHS and CE certified)
- EKOPOWER design & production with excellent high-tech workmanship
- any number
and type of sensors/signals is possible up to 32 inputs, see below
- also possible with ALARM outputs and SMS alarms
> Compatible with many types of wind sensors, anemometers and other
(MAX40, NRG, Davis, Thies, Vector, First Class, Windsonic)
> since 1983 specialized in wind monitoring systems with export to over
> Low Cost
More detal;ed information:
The WindOne system is designed to
provide an affordable and easy-to-use solution for wind site evaluation
wind generator power performance evluation. It easily supports both
simple and complex monitoring applications.
The WindOne system records
wind speed, gust, turbulence intensity (standard deviation/average wind
and direction, as well as the time and date, battery
voltage, and other optional important wind parameters,
like tempearture and atmospheric pressure.
The WindOne is capable of recording wind speed from one (up to eight!)
anemometers, making it ideal for
more complex studies involving multiple
wind speed instruments and other sensors.
The accuracy is excellent by using a two paremeter calibration:
slope and offset of anemometer and meets
international standards (like WMO/IEA). Optional individual calibration certificates available
resulting in an excellent 0.1 m/s accuracy.
The 16 bits conversion & calculation of values assure an unbeatable
accuracy at very low costs.
The ultra low power consumption
of appr 100 uA makes it ideal for remote applications, running at safe
battery pack (no solar panel required, also not if the wireless GPRS
option is installed!)
The WindOne records directly to a Secure
Digital (SD™) card (128MB to 2GB) to provide reliable data
An inexpensive SD™ card will store years of data at 10 min
An optional wireless GPRS internet connection is possible: receive
datafiles automatically at a server!
With optional online graphs,
Using the recorded data is simple. The SD™ card is inserted into a
card reader attached to the USB port
on your computer and will then show up as a drive.
Microsoft Excel or practically any spreadsheet program
can be used to view, graph, and analyze your wind data.
We also supply
ready to use
for calculations of eg Weibull parameters, Energy production,
Logs wind sensors, weather sensors,
analog inputs, and system parameters
- Anemometers (average wind speed, max,
min and standard deviation)
- Pre-calibrated (1 to 8 pcs)
for anemometers from Maximum/ NRG and
Davis Instruments 7911/6410 or
First Class anemometers
Optional MEASNET calibration certificate and 16 bits resolution
for highest accuracy (0.1 m/s)
- Wind vane (wind direction, 1 to 6
- Works with wind vanes from EKOPOWER
DIR21+, NRG 200P, and
Davis Instruments. 7911/6410 or other types.
- Thermometer (temperature) and
atmospheric pressure sensor
- Optional inputs, like (12 or 16 bits)
0-5 VDC or 0/4..20 mA, counters, status, etc
- Real time clock
- Many optional sensors available:
voltage, current, temperature, relative humidity, rain fall, light
kWh (energy) and others
- Adjustable sampling/logging
interval: The sample interval is minimal 1 sec, logging interval
from 1 to 10000 samples (average, maximum, minimum and
For most applications, a10 min interval is ideal.
- Sensors and Mounting: Our
anemometers and wind vanes mount directly to with an stainless steel
to a vertical hole. The wind sensors can be located hundreds
of meters away from the WindOne system.
Optional mounting arms are
- Display: A laptop (with RS232
or USB interface) can function as super-display for reading current
information and is used for configuring the data logger, using the
supplied control software:
A simple menu-driven interface makes setup easy.
Ultra low power Wireless GPRS connecton for receiving data
server via internet
and with optional online
The WindOne system is also available with
with built in webserver, using the iBOX datalogger module.
Communication possible via ethernet and/or internet.
- Power Source: The WindOne
operates directly from any DC voltage source between 6 and 14 volts.
Ultra low Power consumption: approximately 100 uA, which allows the
WindOne to be powered from
the wall, alkaline or lithium
batteries, or solar power systems, or AC adaptor
- Clock: An accurate real-time
clock is used to time-stamp each measurement. The clock is battery
and is accurate to within some seconds a month (or can be synchronised
- Installation: The WindOne
mounts directly to a pole or mast using special clamps.
See overview with possibilities:
channels possible for eg solar radiation, power, status, 4..20
and (AC and DC) power transducers for power performance
See products for more available additional sensors and transducers
To make the installation easier,
accessories for mounting wind sensors are possible with:
- universal sensor mounting arm (USMA) for mounting wind sensors,
temperature/humidity sensors with shield WS21, solar sensor 6450 (with
Available for small or big masts (specify mast size at order)
- booms for masts.
- our partners supply masts up to 80-120 meter!
